High-Performance Power Factor Correction for Industrial Applications
Advanced High-Tension (HT) capacitors designed for individual and centralized power factor correction, harmonic filtering, and enhanced power quality across diverse industrial applications.

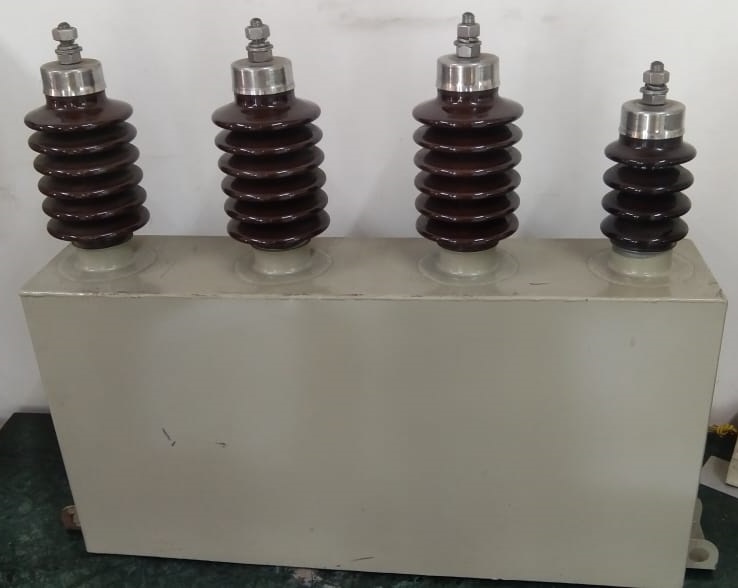

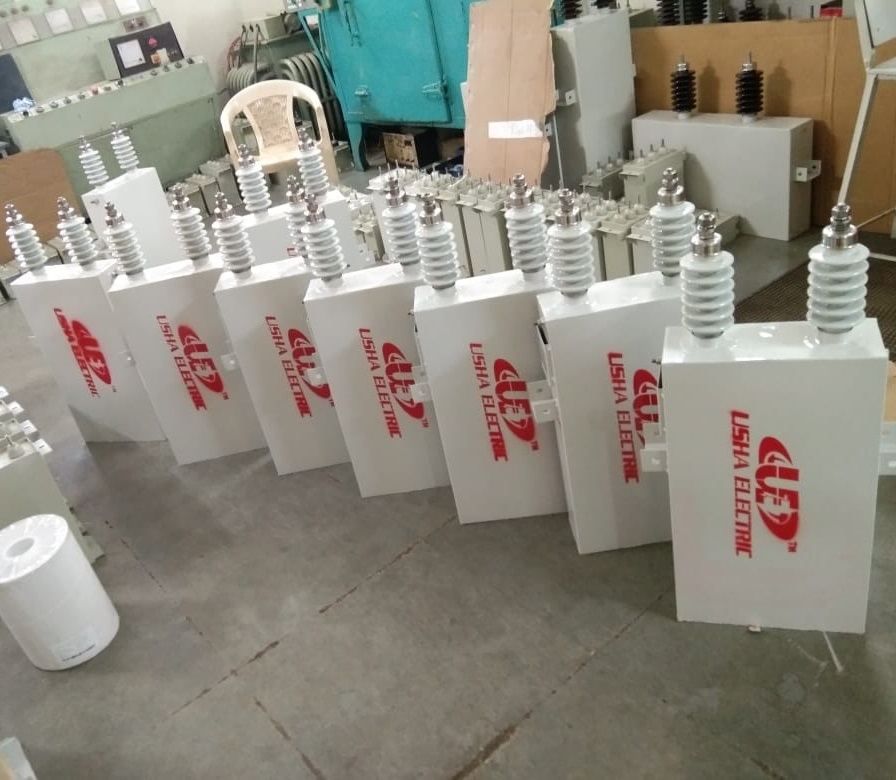

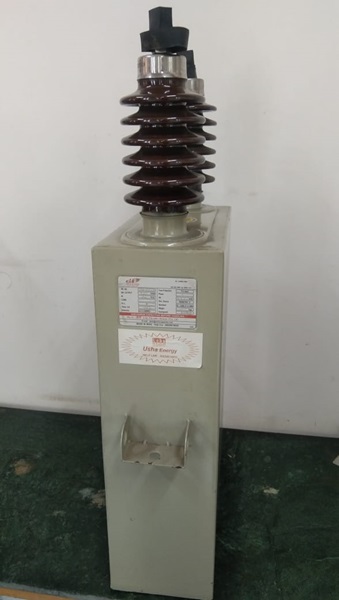

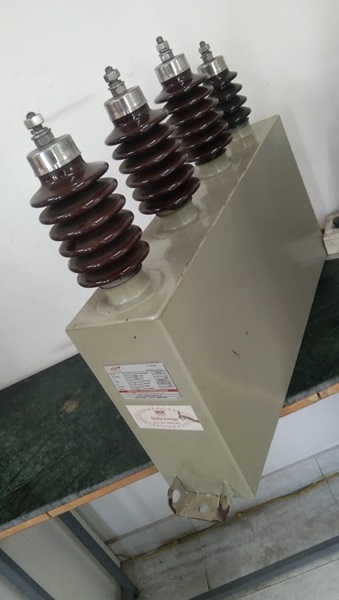

Our HT/HV Capacitors
Usha Capacitors offers a comprehensive range of High-Tension (HT) capacitors engineered for superior electrical performance in power factor correction (PFC), harmonic filtering, and voltage stability applications. Utilizing all-film dielectric technology with bi-axially oriented polypropylene film and laser-cut aluminum foil electrodes, our capacitors are impregnated with a non-PCB base fluid for enhanced reliability. Compliant with IS:13925-1994 and IEC-60871 standards, these capacitors are designed for both indoor and outdoor use, delivering up to 1000 kVAr per single-phase unit with a voltage range of 2.4 kV to 24 kV.
Key Features
- All-Film Dielectric: Bi-axially oriented polypropylene film (hazy on both sides, in two or three layers) with laser-cut aluminum foil electrodes for low dielectric losses (~0.1 W/kVAr).
- Non-PCB Impregnation: Environmentally safe fluid ensures reliability and compliance with RoHS standards.
- High Current Capacity: Supports continuous operation at 1.30 times the rated RMS current, excluding transients.
- Robust Construction: Welded bushings and solid terminal studs prevent fluid leaks; folded foil electrodes reduce partial discharge.
- Superior Connections: Extended foils are soldered for high-quality internal connections.
- Corrosion Protection: Oven-cured superior paint system for durability in harsh environments.
- Vacuum Impregnation: Minimizes humidity content for enhanced longevity.
- Temperature Range: Operates reliably from 5°C to 55°C.
- Standards Compliance: IS:13925-1994, IEC-60871, and ISO:9001-2015 certified.
Reliability
- Decreases voltage drop and improves voltage stability.
- Reduces network losses for enhanced energy efficiency.
- Improves power quality by mitigating harmonics and reactive power.
- Suitable for both indoor and outdoor applications.
- Delivers superior electrical performance with maximum output of 1000 kVAr per single-phase unit.
Applications
Individual Power Factor Correction:
Three-phase motors
Power transformers
Group power factor correction
Central Power Factor Correction: For all industrial and inductive loads
Dynamic PFC: Real-time power factor correction for fluctuating loads
Fixed Type Capacitor Banks: For stable load applications
Filter Application Systems: Harmonic mitigation in steel plants, wind mills, and solar power systems
SVC (Static Var Compensator) Applications: Voltage regulation in power systems
Industrial Sectors: Steel plants, wind mills, solar power, APFC systems, and other heavy industries
Technical Specifications
Voltage Range: 2.4 kV to 24 kV
Frequency: 50 Hz / 60 Hz
Maximum Output: 1000 kVAr (single-phase)
Dielectric Loss: ~0.1 W/kVAr
Current Capacity: 1.30 times rated RMS current for continuous operation
Temperature Range: 5°C to 55°C
Type: Non-self-healing
Standards: IS:13925-1994, IEC-60871
Enclosure: Corrosion-resistant, suitable for indoor/outdoor use
Why Choose Usha Capacitors?
With over 350 successful electrical turnkey projects delivered globally, Usha Capacitors is a trusted leader in energy management solutions. Our HT capacitors are designed and manufactured with advanced technology to ensure superior performance, reliability, and compliance with international standards. Backed by a team of 125+ professionals and state-of-the-art manufacturing facilities, we deliver customized solutions that optimize power quality and reduce operational costs. Contact us at delhi@ushacapacitors.com for specialized advice or tailored configurations.
